Mining - Reel Winders

ar Winches Manufacture A Wide Range of Standard And Fully Custom Reel Winding And Spooling Winches.

Our reel winders are designed to facilitate the installation or removal of wire, rope or umbilicals from winches to storage reels under constant back tension.

Get Your FREE Quote Today

Call Now

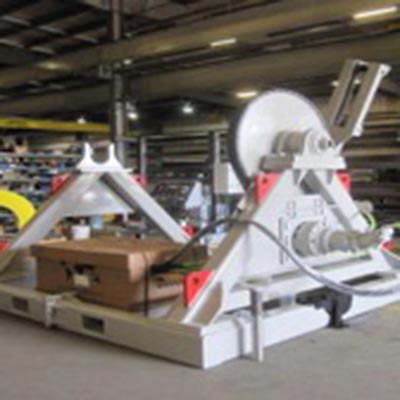

Goldcorp

Support reel size of 108" x 72" wide
Up to 450,000 lbs torque at reel shaft
SAHR Brake (150% of maximum torque)
Adjustable "A" Frame
Underwound and overwound capabilities

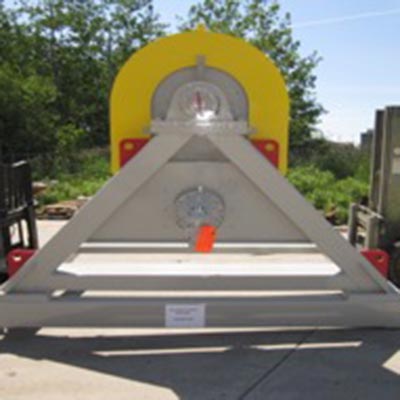

Walden Equipment

Max reel weight of 100,000 lbs
Up to 144" diameter reel x 120" long
Maximum torque at reel shaft 720,000 lbs
Underwound and overwound capabilities
50 HP electric motor
Electro hydraulic power pack

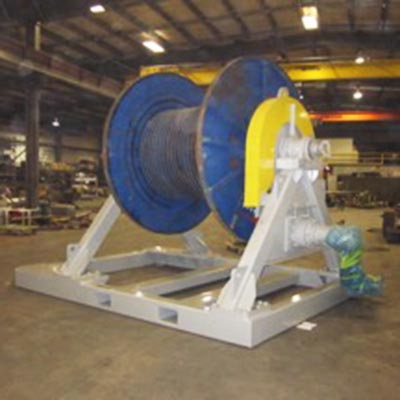

Sifto

Up to 225,000 lb torque
60,000 lbs reel weight capabilities
25 HP motor
Forklift pockets for easy movement

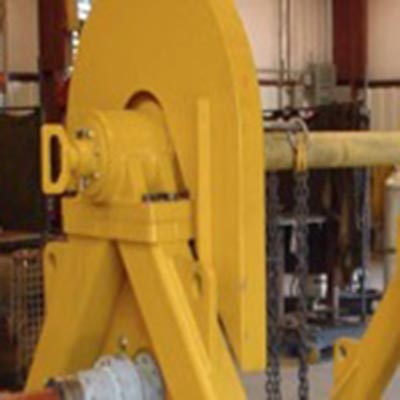

Cementation

Up to 80" reel diameter
80,000 reel weight capacity
Adjustable A Frame
Tie down lugs

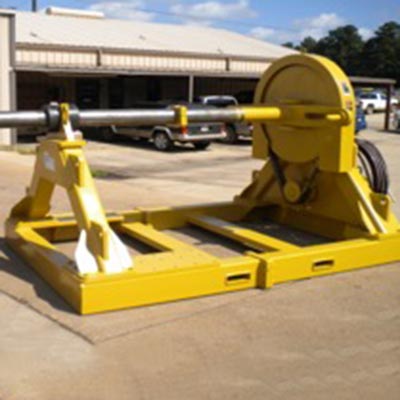

Goldcorp

Reel capacity of 144" x 120" wide
220,00- torque at reel shaft
Electro hydraulic power pack
Adjustable A Frame
